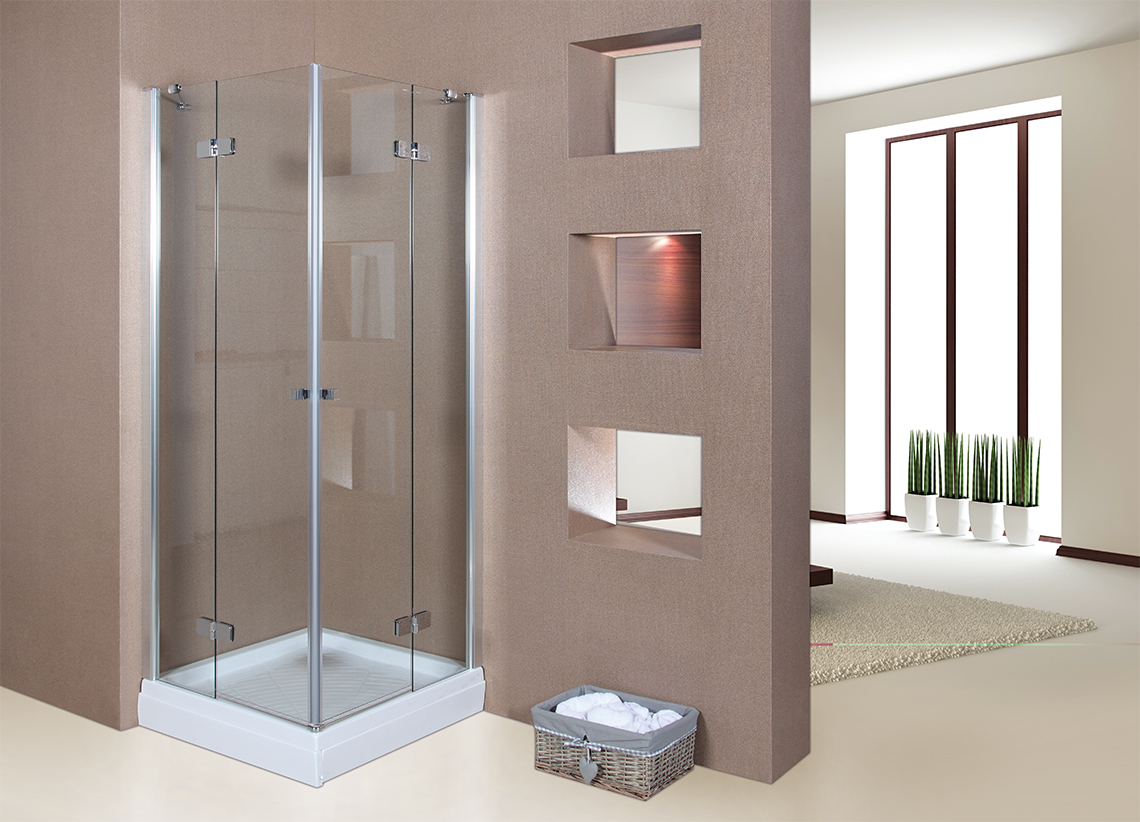

MS-503
TECHNICAL SPECIFICATIONS
| MODEL | MOON SET |
| APPLICATION | 2 FIXED 2 OPENABLE |
| HEIGHT | 190 CM |
| MEASURE RANGE | 80X80-130X130 CM |
| FIXING | CROSS STABILIZER |
| ADJUSTMENT SHARE | 1.5 CM |
| PROFILE THICKNESS | 4 CM |
| PROFILE WEIGHT | 0.820 GR/MT |
| GLASS | 6MM |
| GLASS EDGE CHAMFER | GENERAL |
| HANDLE | BRASS/CHROME |
| CHROME COVER | PROFILE, SCREW |
| HINGE | GLASS TO GLASS |

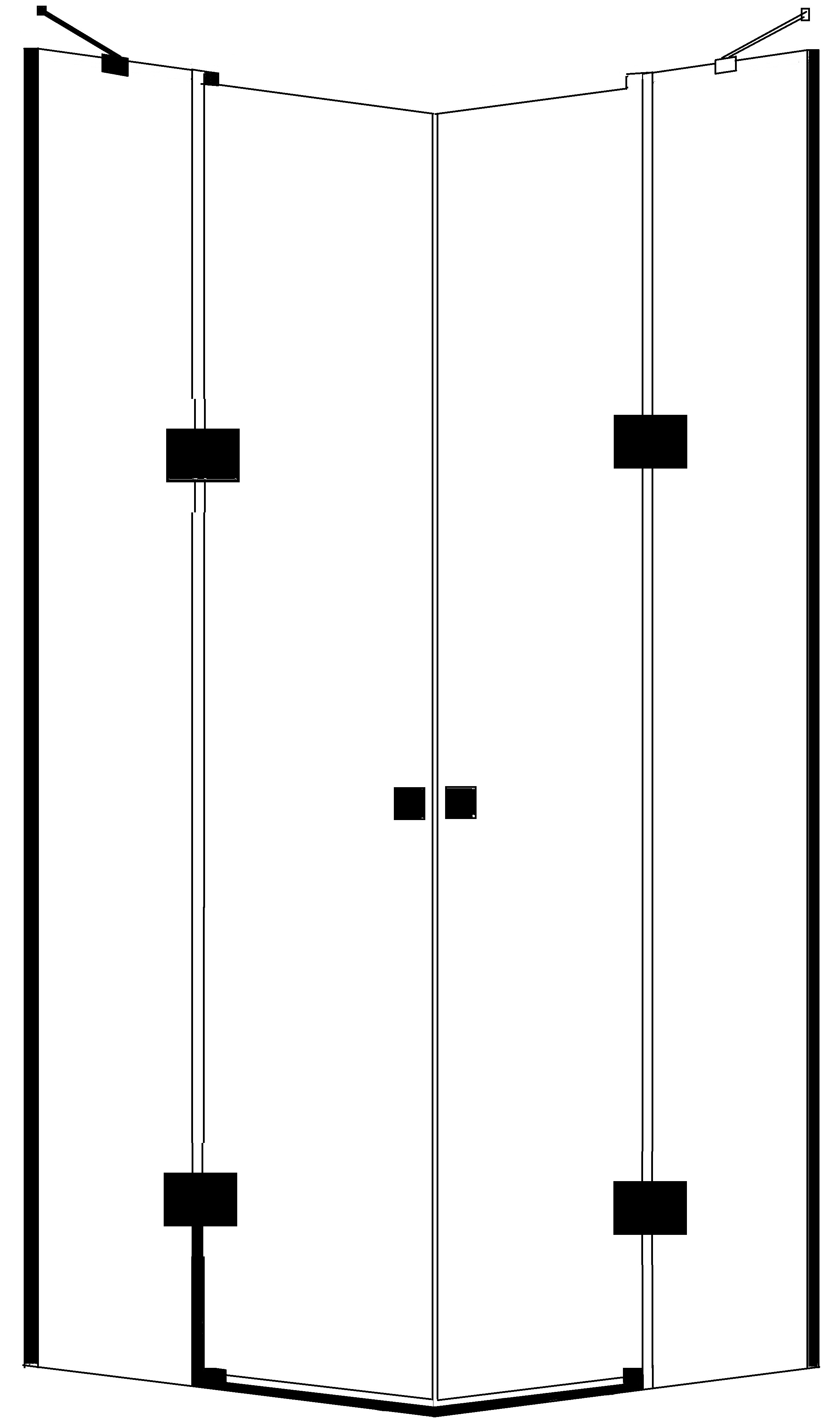

TECHNICAL DRAWING
